Different kinds of wok/ pan quality inspection:
Fry pan
DESSINI PANS
Diamond Pans
pot/wok
Sauce pan
Hamburger Maker
Aluminum Ceramic Cookware
Aluminum Marble Cookware
Die-cast Aluminium Series
Happycall Frying pan
Grill pan
Sauce pot
Roaster
cake pan
pizza grill pan
non-stick pan
Some common factors for wok/ pan quality control:
Appearance:
1. The inside of the paint should be environmental protection
2. The pot’s surface should be smooth
3. To check whether there is raised points and potholes on the surface
4. To check whether there is crack on the surface
5. Can be overturned bottom of the pot, prop the pot concave center counter with a finger, struck with
a hard object, the louder the sound, it is better if you feel the vibration is bigger
6. Check the distribution of thickness and thin.
Size:
1.Measure the dimension and weight.
Quality test:
1. HIGH-TEMP test: the pot is heated to 300~350 degrees, put it into cooling water for cooling, require the pot
will not burst

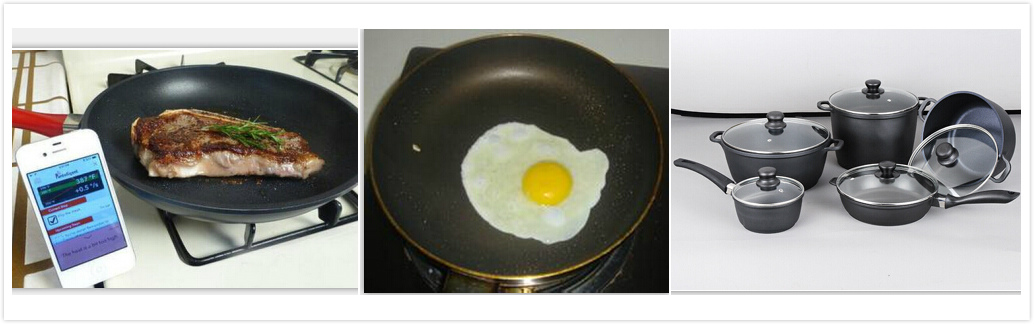

2.Non-stick test: Fried egg
Paint's adhesive ability:
Cross cut test:
A.Use Cross Cut Tester to score 11 lines for each Vertical and horizontal, marking the length is about 20MM,
the depth of cut is appropriate to the paint layer.
B.Use the brush to clean the scribing edge paint layer of powder.
C. Prepare 3M tape with length of 75mm (type 610#)
D.Take the 3M tape from the edge of one end of the BG, slowly flat on the 100 above case, and then use your
fingers to gently touch pressure, ensure that the tape and color (or product) between the residual free bubbles.
2.6 in the color plate (or product) of the other flat parts, repeat the test 2 times.
E.Flatten, wait for 30 seconds + 90, and then pressed by the left hand, Holding onto the free end of the tape by
right hand, tear the 3M tape from opposite direction isdegrees quickly arond 180 degree.
F.Use a magnifying glass, carefully check the shedding coating 100 on the grid, if the coating exfoliated area
in 5% the following, then determine the adhesion is OK, otherwise is NG
